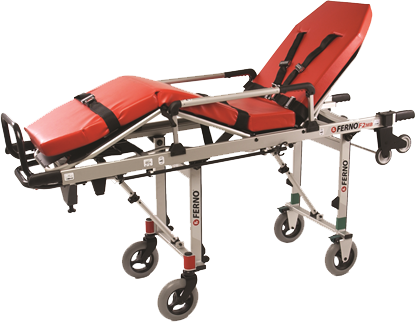

Independent leg operation provides safe loading into the ambulance, legs unfold automatically for easy unloading.
Order number:
- 60-0303-001 MONOBLOC F2 4P 59CM (H56)
- 60-0323-001 MONOBLOC F2 4P 69CM (H69) FP 3RD POINT SST
- 60-0324-001 MONOBLOC F2 4SW 4P 69CM (H69)
- 60-0304-001 MONOBLOC F2 5P 59CM (H56)
- 60-0325-001 MONOBLOC F2 5P 69CM (H69)
Description
Specifications
Support
Description
- Color-coded controls are easy to use and require minimal training
- Ambulance loading heights: 500 or 540mm, 560 or 590mm, 650 or 690mm
- Large 200 mm wheels easily roll over any terrain
- Control-end swivel-lock wheels and loading-end fixed wheels with wheel locks
- Four telescoping carrying handles with three positions•Adjustable backrest with 8 positions up to 90°
- Shock frame and contour frame
- 100% mechanical, low-maintenance cot
- Aluminum construction
- Standard fold-down Sidearms and Foot Support included
- Certifications: EN 1789 and EN 1865
Specifications
- Length min 1915 mm
- Lenght max 2269 mm
- Width 560 mm
- Height min 272 mm
- Height max 807 mm
- Weight 36 kg
- Load limit 250 kg
